Electrical assembly manufacturing
Outsourced wire harness production is managed from specification review through delivery. High voltage busbars are formed, plated and assembled to drawing.
ASSEMBLY

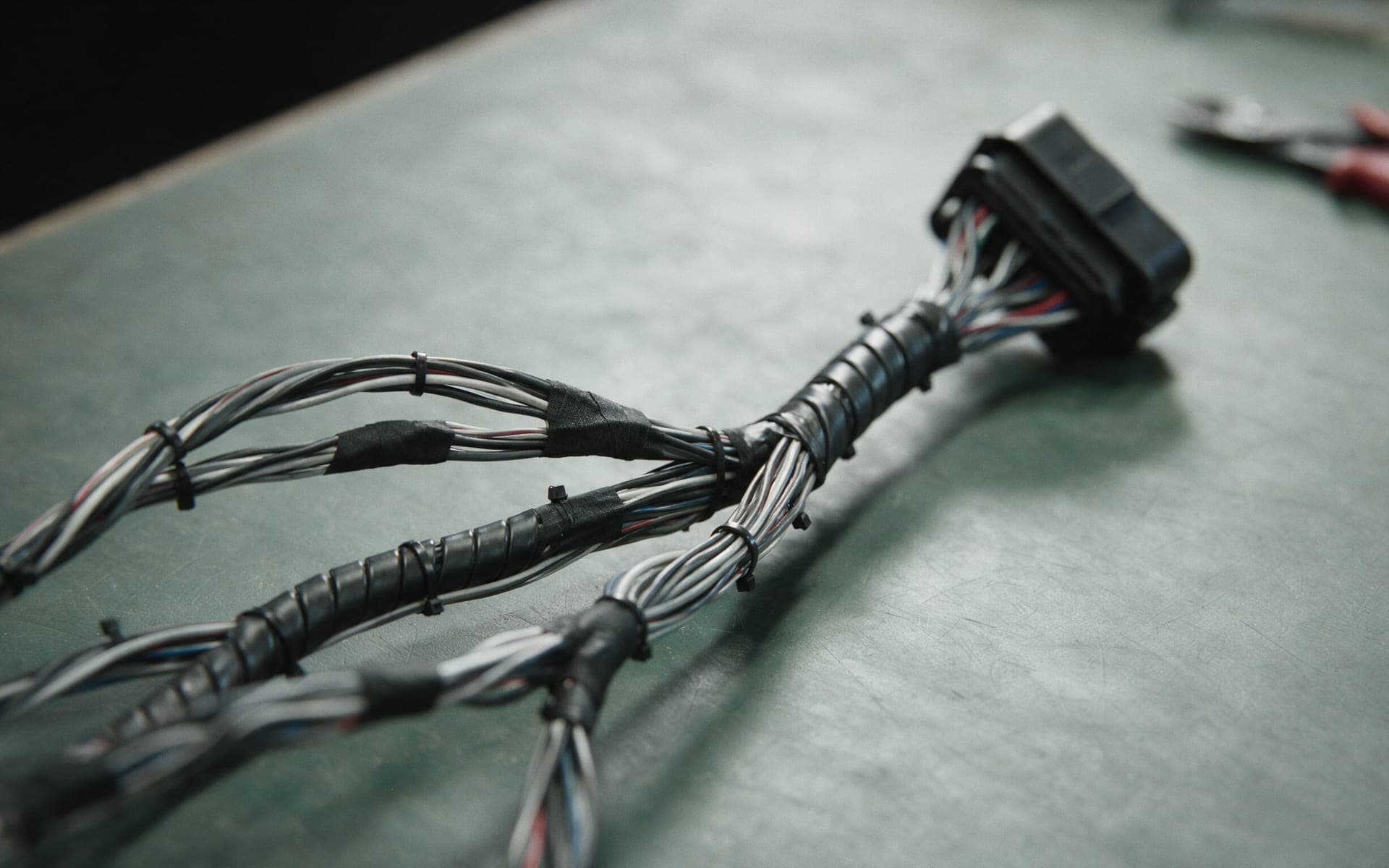

Wire Harnesses
Production-ready harnesses are cut, crimped, tested and packaged to the approved wiring schedule or drawing.
- PROCESS
- CUT · CRIMP · TEST
- DELIVERY
- LINE READY
Harness build sequence
Cut
Conductors are cut to the lengths on the wiring schedule, with the specified gauges and insulation.
Crimp
Terminals are crimped with tooling matched to the terminal specification and production run.
Test
Harnesses are tested to the approved specification before packaging.
Package
Harnesses are labelled and packaged to the approved specification.
POWER

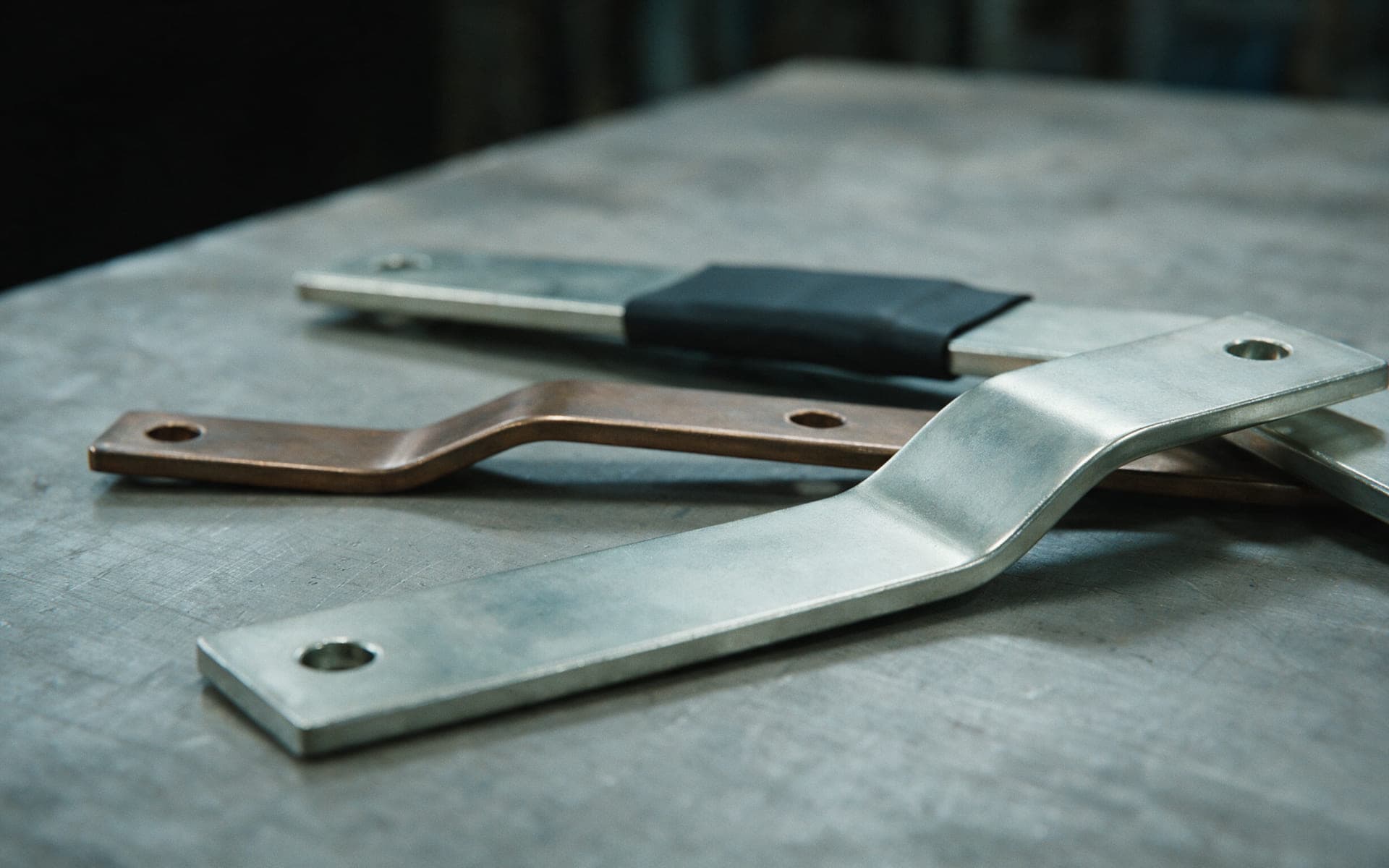

HV Busbars
High voltage busbars are formed, plated and assembled to drawing. Quotation review covers the current rating, insulation requirements and geometry.
- PROCESS
- FORM · PLATE · ASSY
- BUILD
- TO DRAWING
Request a quote
A wiring schedule or a busbar drawing is enough to scope the line.
